Introduction :

This 2x6 HDMI Splitter/Extender over single Cat 5E/6 connect 2 HD signals sources

with multiple HD display terminal,It can easily split any HD signal to more than one HDTV

or projector which support HD. And it can extend HDMI signal up to 100-120m by one

cat5E/6(need to be used with RX receiver)

Features :

1.Long distance transmission up to 100M

2.Video transmission up to 4K/30Hz,and support 1080/720 format etc.

3.Support 4-ways UTP extension

Specification:

HDMI version …………………………….…….....……………….......….. HDMI 1.4/HDCP 1.4

HDMI resolution …………………..……............. 4k/1080p/1080i/720p/576p/576i/480p/480i

Support video format ………………………......….......……..……….. 24/30/36 bit deep color

Support audio format ………………..………. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

HDMI input port .......………………………………….………………………….….........…….. 2

HDMI output port .......……………………………….…………………………….….......…….. 2

RJ45 port ........………………………........……….………………………………...........…….. 4

Max bandwidth ...……………………………..…………………………………………. 340MHz

Max baud rate ……………….…….………….……….…………………………… 3.4Gbps x10

Input cable distance .………………...... AWG26 HDMI 1.4 standard cable up to 15 meters

Output cable distance ..…………................… Cat5e/cat6 standard cable up to 100 meters

Max working current ……………………….......………….………………………….... 1600mA

Power adapter format …………............... AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range ………...…….....………..…………………… (-15℃ to +55℃)

Dimension (L x W x H) ………...............…….….……………….....…….189x129x25.3 (mm)

Weight …….…..……………………………………..….……..…….…………………........ 437g

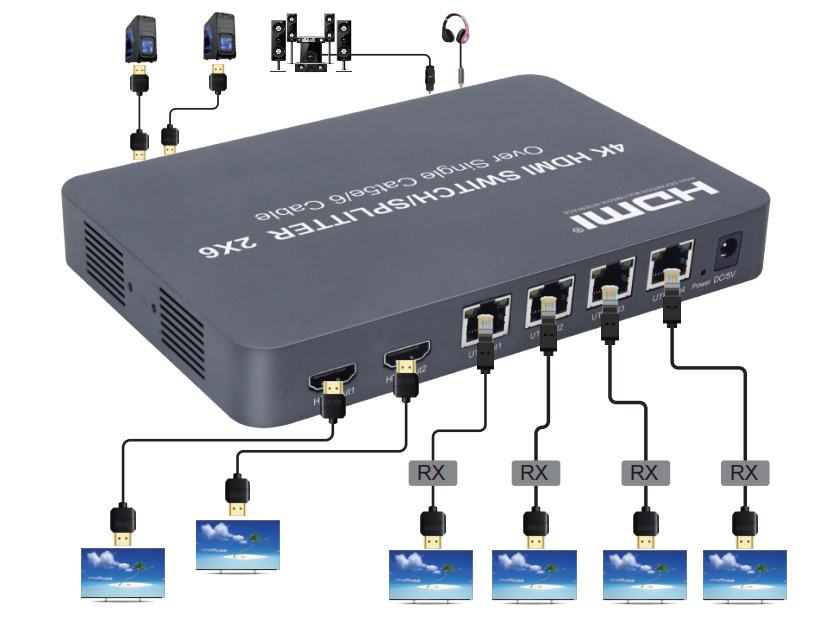

Application diagrams :
