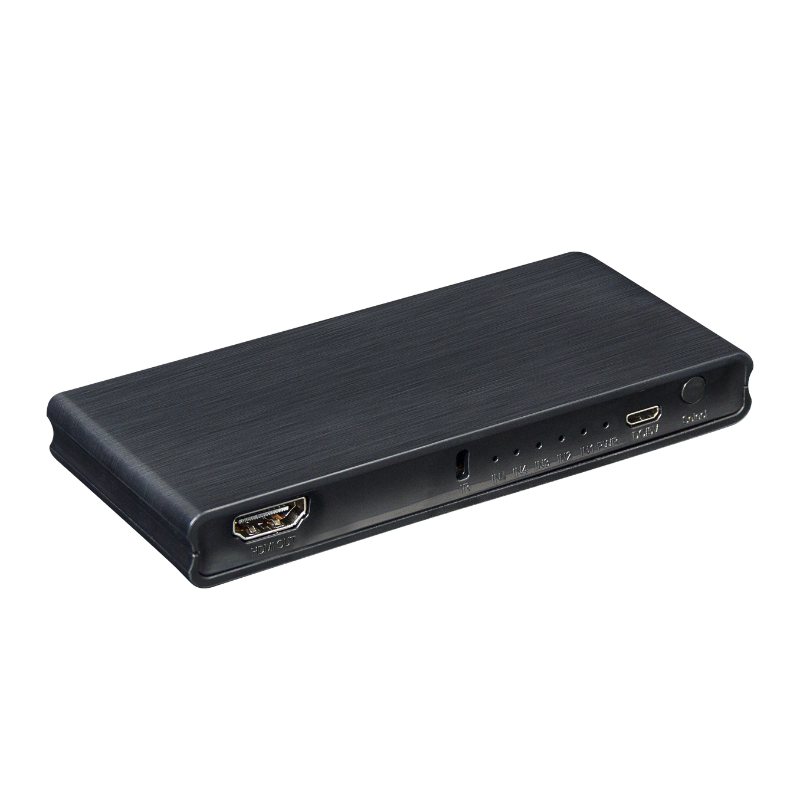

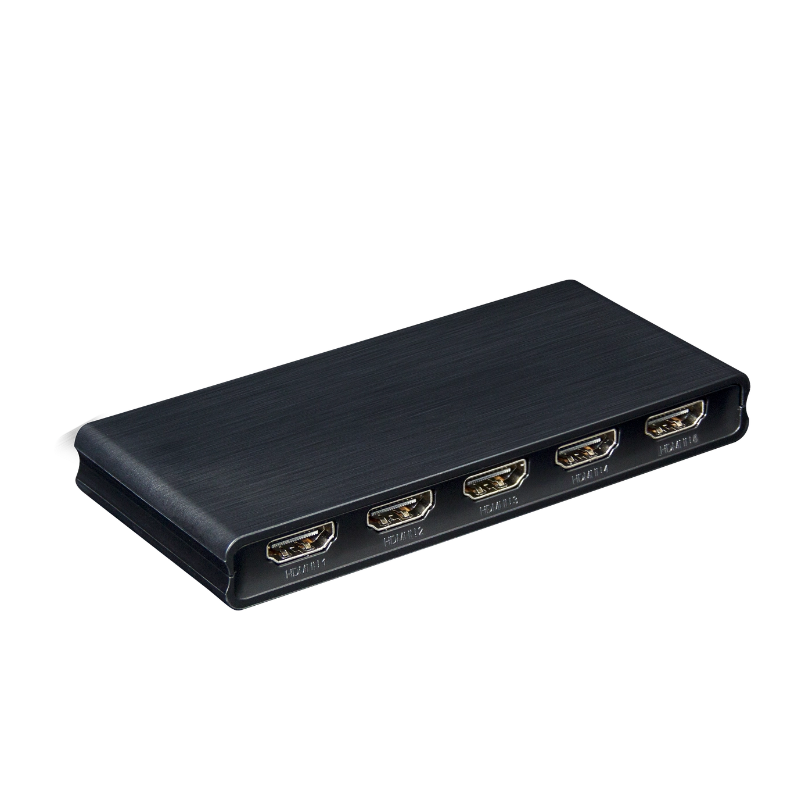

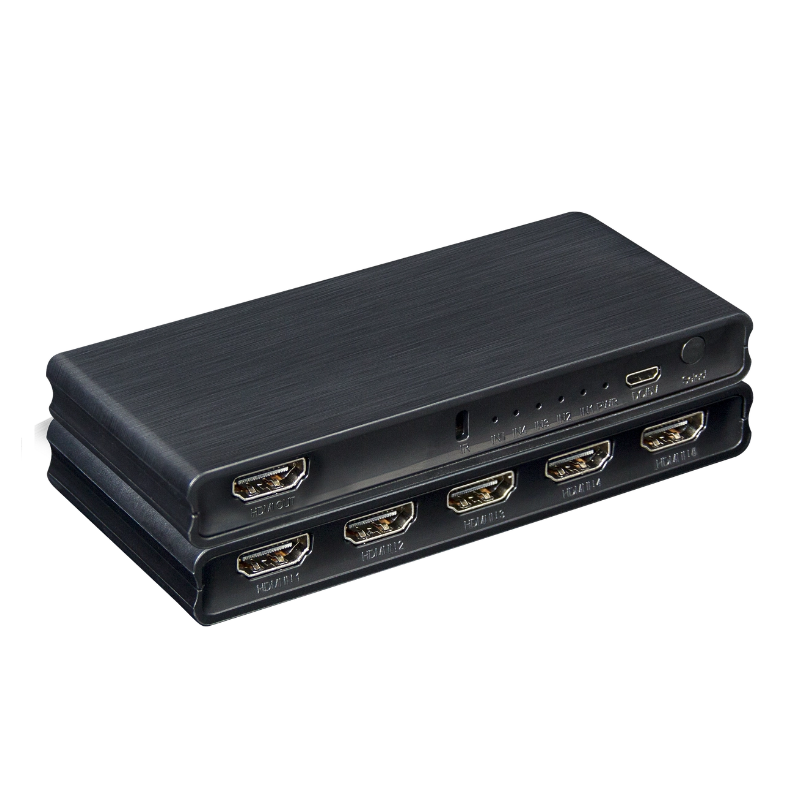

HDMI 2.0 Switch 5x1 4K60Hz Plastic Case

HDMI 2.0 Switch 5x1 4K60Hz Plastic Case

Model: HSW501-V2.0



Products Description

The 5x1 HDMI switch allows 5 HDMI ports to be switched to a single display terminal via

remote control or buttons on unit. The switcher can be placed at the end of a long HDMI cable

to regenerate the HDMI signal. The HDMI switcher can support all hd formats including 720p,

1080i, 1080p, 4K/30Hz,4K/60Hz .


Features:

* Support 6x3Gbps data rate for tmds clock up to 600MHz.

* Support 3D.

* Supports highest video resolution 4K/60Hz.

* Support HDR.

* Support automatic switching of HDMI input ports (for 5 ports, the last one has priority).

* Support 24/30/36 bit deep color .

* Support AWG26 HDMI standard cable,Input up to 8metres ,output up to 8metres

 (4K/30Hz resolution and below).

* Support 2.0 HDMI standard cable, input up to 3 meters, output up to 5 meters

 (4K/60Hz resolution).

* Supports single high definition display for multiple sources, such as DVD Players, PS4

 and HD players, Set Top Boxes.


Specifications:

HDMI resolution ……………………….......................................................................4K/60Hz

Support video format ..........................................................................................................3D

Support video color format ………………………….............……….....24/30/36 bit deep color

Support audio format………………..................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..600MHz

Max baud rate……………….…….………………….………………………………….......6Gbps

Input cable distance..…... …………...............≤8m AWG26 HDMI standard cable(4K/30HZ);

 ≤3m 2.0 HDMI standard cable(4K/60HZ);

Output cable distance…………………………≤8m AWG26 HDMI standard cable(4K/30HZ);

 ≤5m 2.0 HDMI standard cable(4K/60HZ);

Max working current………………………………………………………………………....400mA

Operating Temperature range……..…………….…………………………………(-10 to +55℃)

Dimension (L x W x H)…… ……………………………….…………………….122x56x15 (mm)

Weight…..………………………………………………………..…….………………….......…95g
