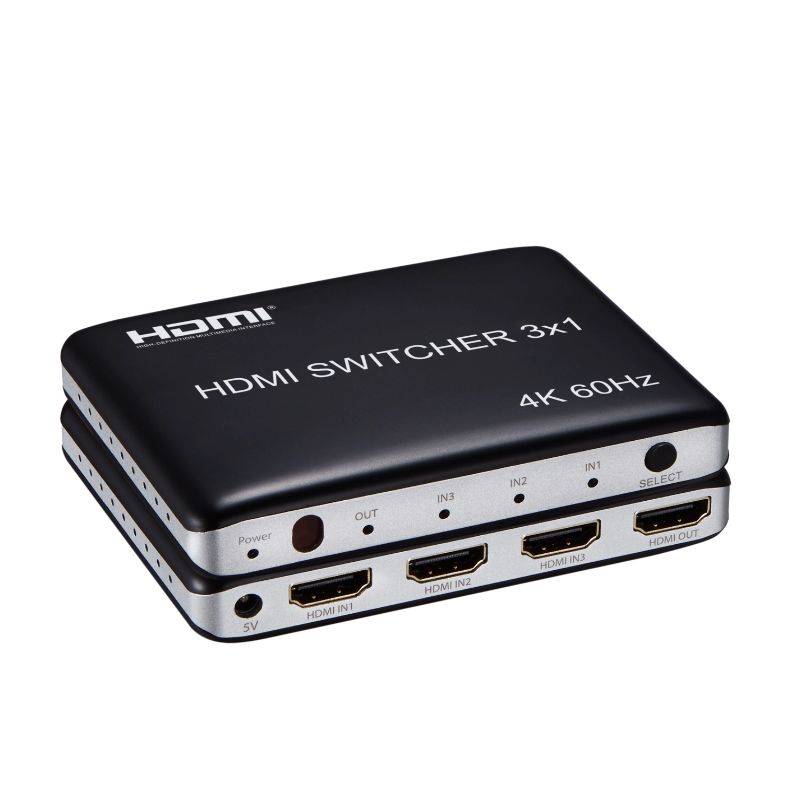

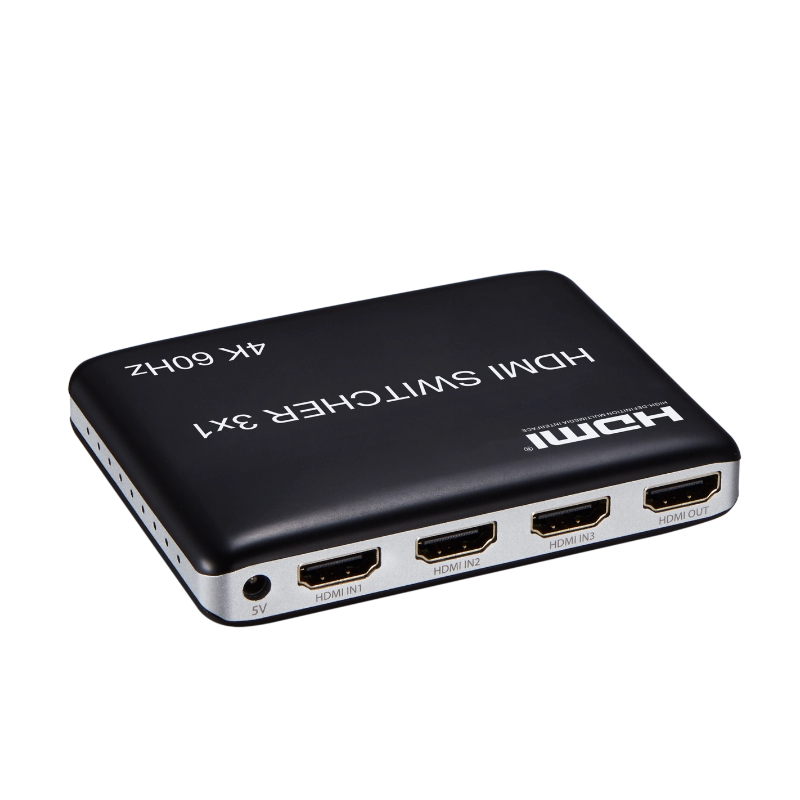

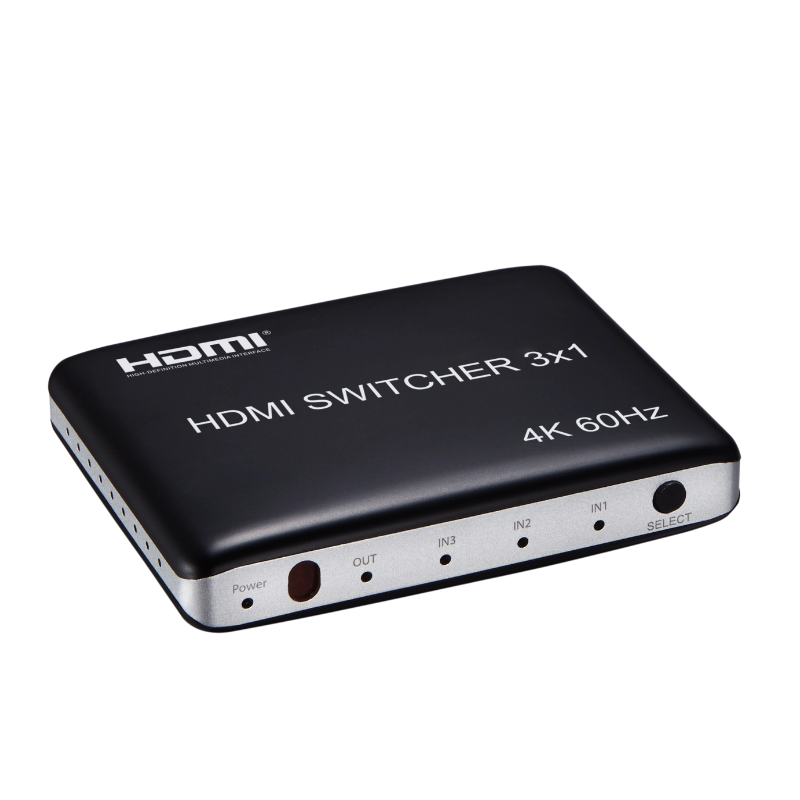

HDMI 2.0 Switch 3x1 4K60Hz

HDMI 2.0 Switch 3x1 4K60Hz

Model: HSW301-V2.0



Products Description

The 3- Port HDMI switch allows 3 HDMI ports to be switched to a single display terminal via remote control or buttons

 on unit. This HDMI Switch supports video formats including 720p, 1080i , 1080p, 4K/30Hz,4K/60Hz.


Features

* Support 6Gbps data rate for tmds clock up to 600MHz

* Support HDMI2.0b

* Support 3D

* Supports highest video resolution 4K/60Hz

* Support HDR

* Support 24/30/36 bit deep color

* Support AWG26 HDMI standard cable,Input up to 8metres ,output up to 8metres (4K/30Hz resolution and below)

* Support 2.0 HDMI standard cable, input up to 3 meters, output up to 5 meters (4K/60Hz resolution)

* Supports single high definition display for multiple sources, such as DVD Players, PS4 and HD players, Set Top Boxes

* Needs 5V/1A power adapter.


Specifications

HDMI version   …………………………………….……………………………….. HDMI 2.0b

HDMI resolution ………………………............................................................Up to 4K/60Hz

Support video format……………………………………………………………………………3D

Support video color format …………………............………..………  24/30/36 bit deep color

Support audio format……………..............….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….600MHz

Max baud rate……………….…….………………….……………………………………..6Gbps

Input cable distance..…... ……..…..……≤8m AWG26 HDMI standard cable under 4K/30Hz; ≤3m 2.0 HDMI standard cable in 4K/60Hz

Output cable distance……………………..≤8m AWG26 HDMI standard cable in 4K/30Hz; ≤5m 2.0 HDMI standard cable in 4K/60Hz

Max working current…………………………………………………………………….....350mA

Operating Temperature range……..……………..……………………………… (-10 to +55℃)

Power adapter specification…………………………………….….….……..AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Dimension (L x W x H) ……………………….……….………………………102x79x22 (mm)

Weight…..…………………………………………….…………..…….………………………90g
