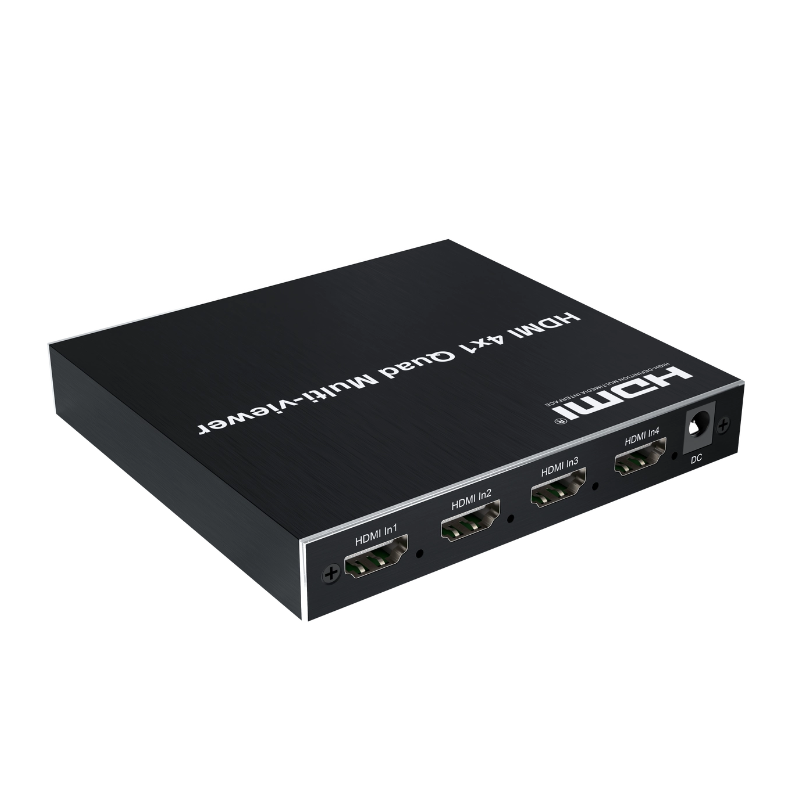

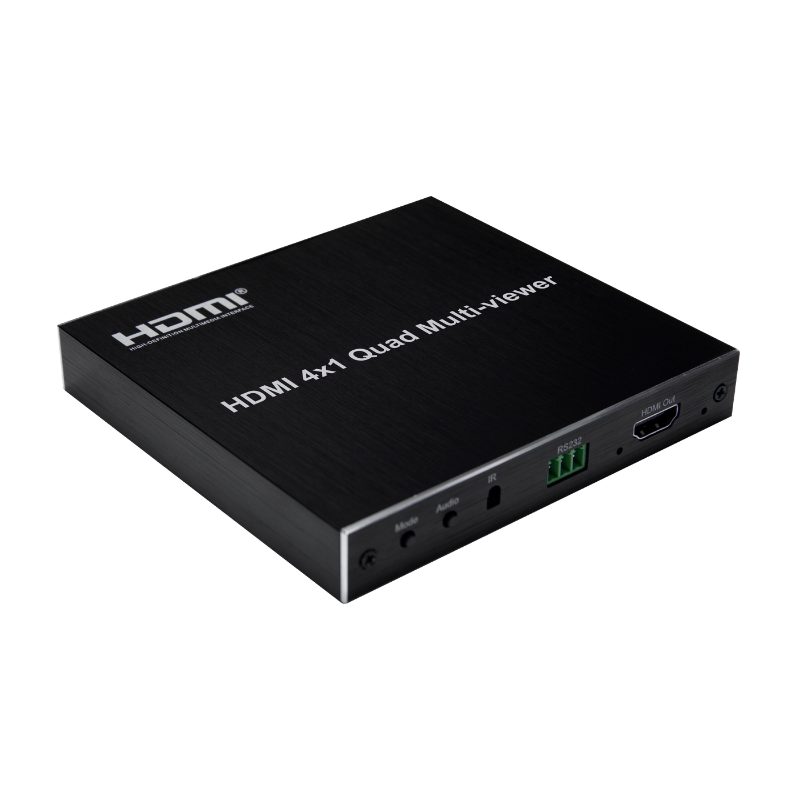

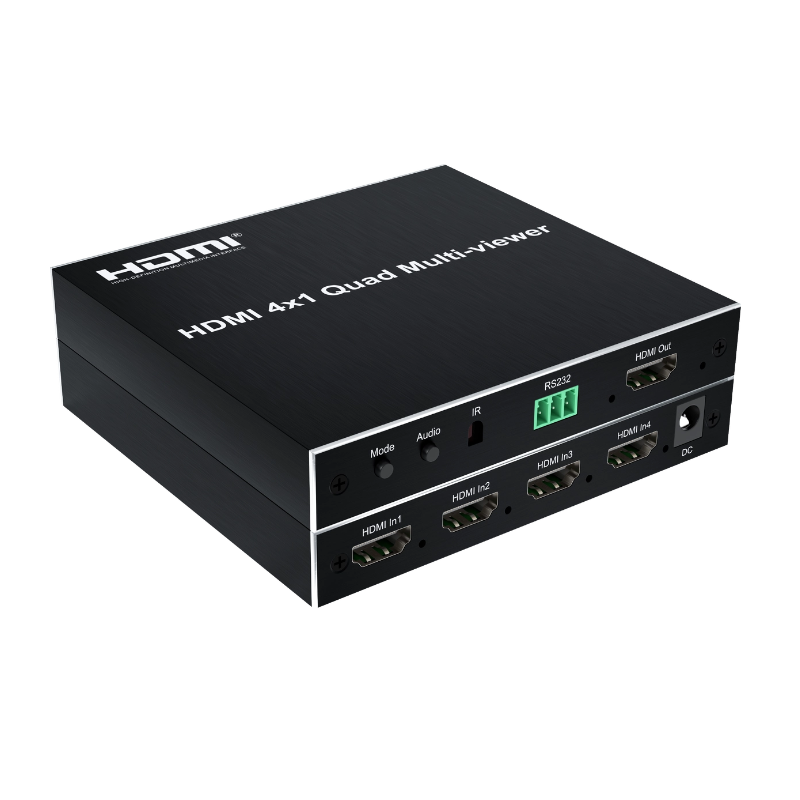

HDMI 4x1 Quad Multi-viewer Switch 1080P

HDMI 4x1 Quad Multi-viewer Switch 1080P

Model: HSW401-Q1



Products Description

HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and

seamless switching output switch. It can display 4HD digital video signal on the same

screen, and has a variety of video segmentation, seamless switching 4 HD input signal

synchronously. The control methods of the switch is flexible, it can be switched via button

and IR control. It's a very practical and stable switch and easy to install, can be used in

the major projects, meeting halls and other places.


Features:

* Support 4 HDMI input, 1 HDMI output;

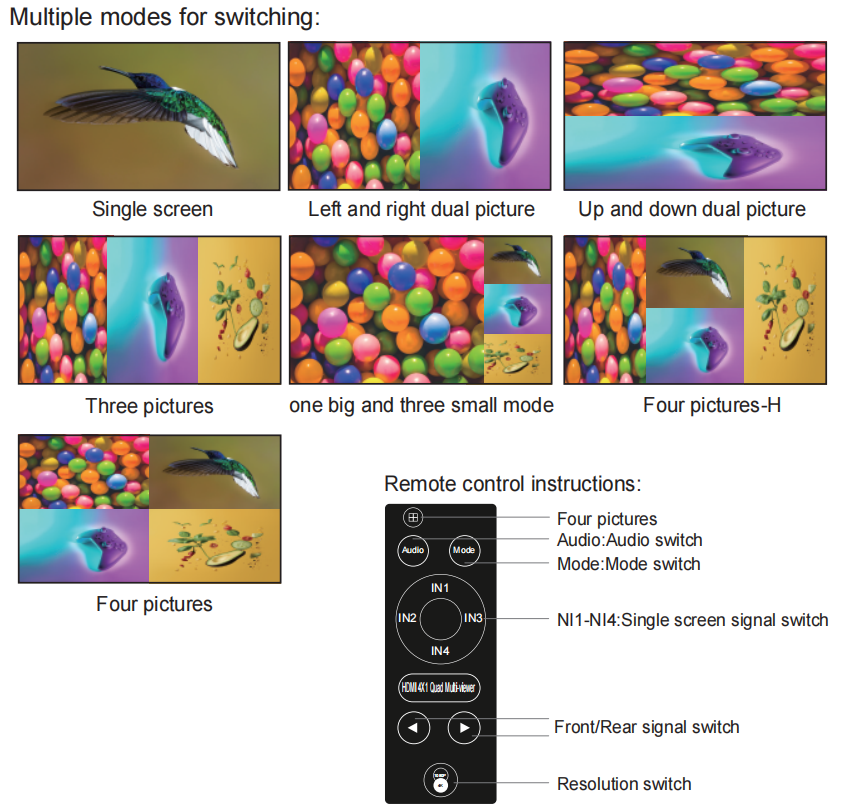

* Support 4 channels HDMI signal screen segmentation;

* Support 4 channels HDMI signal seamless switching;

* Support highest resolution up to 1080P/60Hz;

* Support IR control;

* Input support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on;

* Support audio output format: PCM2;


Specifications:

HDMI resolution .................................................................................................... 1080P/60Hz

Audio format ................................................................................................................... PCM2

Input cable distance ..…...…................... 1080P/60Hz ≤15M AWG26 HDMI standard cable

Output cable distance …................ ........ 1080P/60Hz ≤15M AWG26 HDMI standard cable

Max bandwidth ............................................................................................................ 150MHz

Max baud rate .......................................................................................................... 1.5x3Gbps

Maximum working current ................................................................................................ 0.6 A

Power adapter format ..................... Input AC (50 hz, 60 hz) 100V to 240V; Output: DC 5V/1A

Operating Temperature range ............................................................................ (10 ~ + 45 ℃)

Dimension ..................................................................................................... 121x119x19(mm)

Weight ............................................................................................................................... 220g
