Introduction

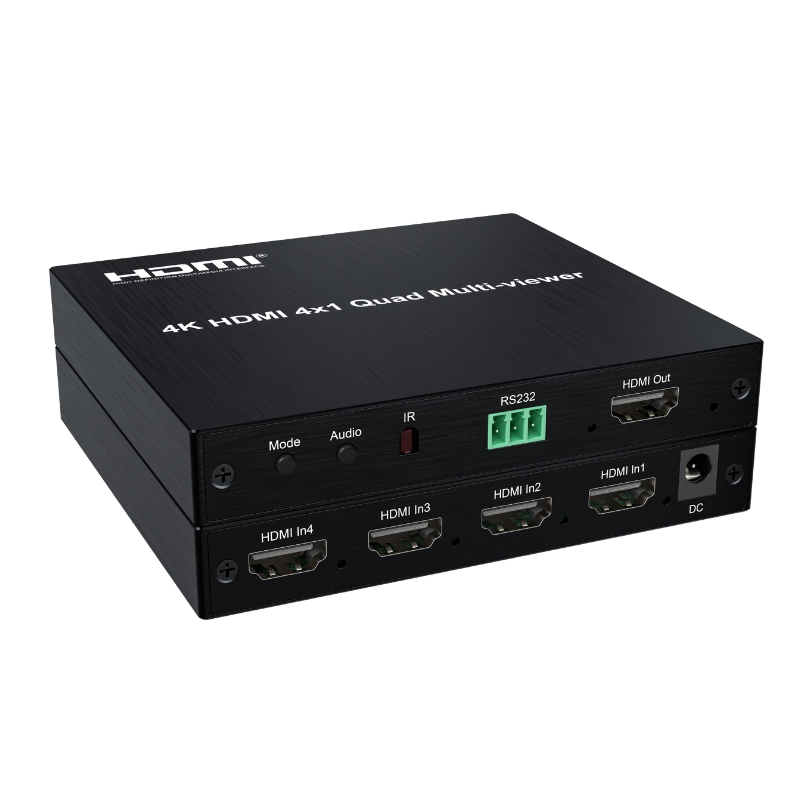

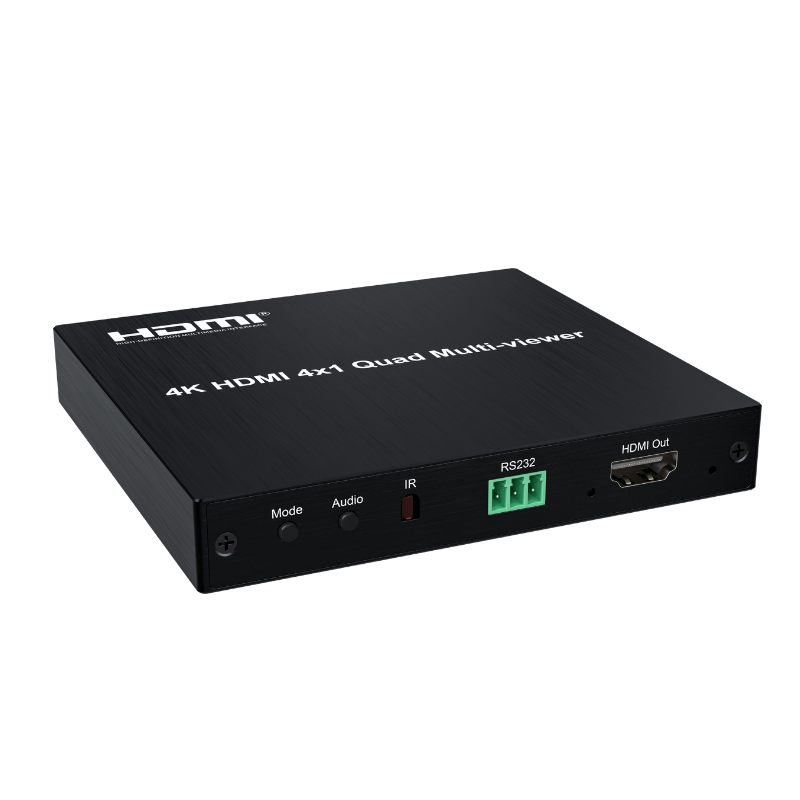

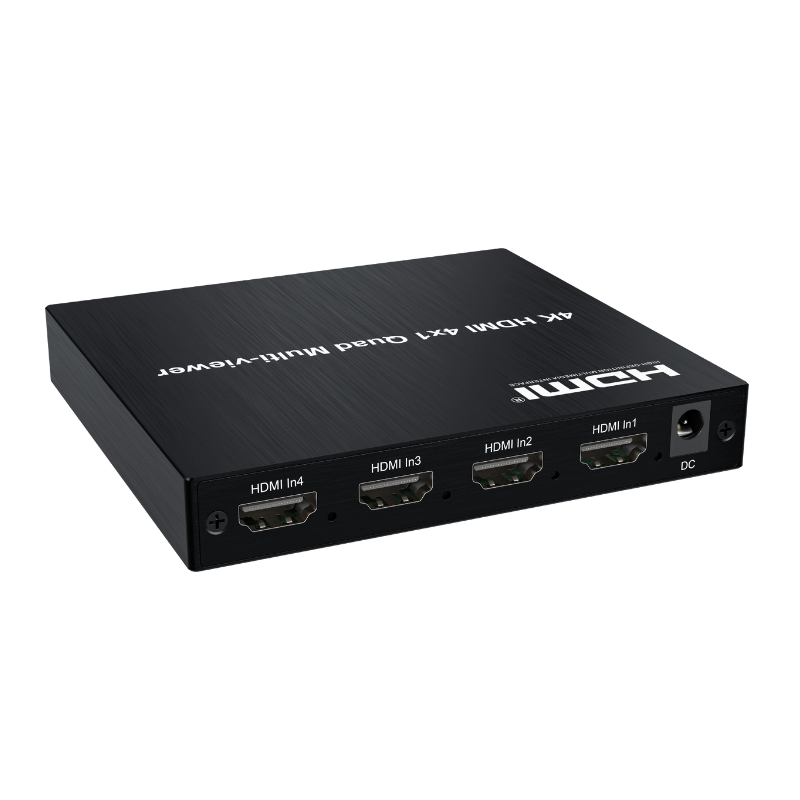

 4K HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen

segmentation and seamless switching output switch. It can display 4HD digital video

signal on the same screen, and has a variety of video segmentation, seamless switching 4

HD input signal synchronously. The control methods of the switch is flexible, it can be

switched via button or IR control. It’s a very practical and stable switch and easy to install,

can be used in the major projects, meeting halls and other places.

Features:

* Support 4HDMI input, 1 HDMI output；

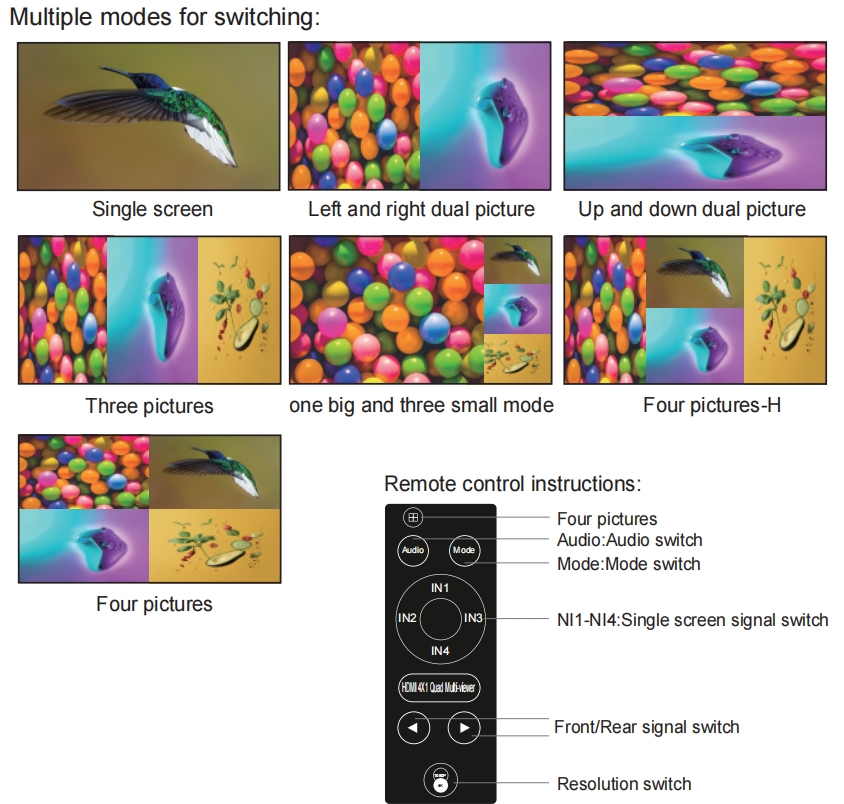

* Support 4 channels HDMI signal screen segmentation；

* Support 4 channels HDMI signal seamless switching；

* Support highest resolution up to 4K/30Hz；

* Support IR control；

* Input support resolution: 4K,1080P,720P,1080i,1024X768,1360X768 and so on；

* Support audio output format: LPCM2.0；

Specifications：

HDMI resolution .......................................................................................................... 4K/30Hz

Audio format ................................................................................................................... PCM2

Input cable distance ..…...…......................... 4K/30Hz ≤10M AWG26 HDMI standard cable

Output cable distance …............................... 4K/30Hz ≤10M AWG26 HDMI standard cable

Max bandwidth ............................................................................................................ 340MHz

Max baud rate .......................................................................................................... 3.4x3Gbps

Maximum working current ................................................................................................ 0.6 A

Power adapter format ..................... Input AC (50 hz, 60 hz) 100V to 240V; Output: DC 5V/1A

Operating temperature range ............................................................................ (10 ~ + 45 ℃)

Dimension ..................................................................................................... 121x102x19(mm)

Weight ............................................................................................................................... 220g
