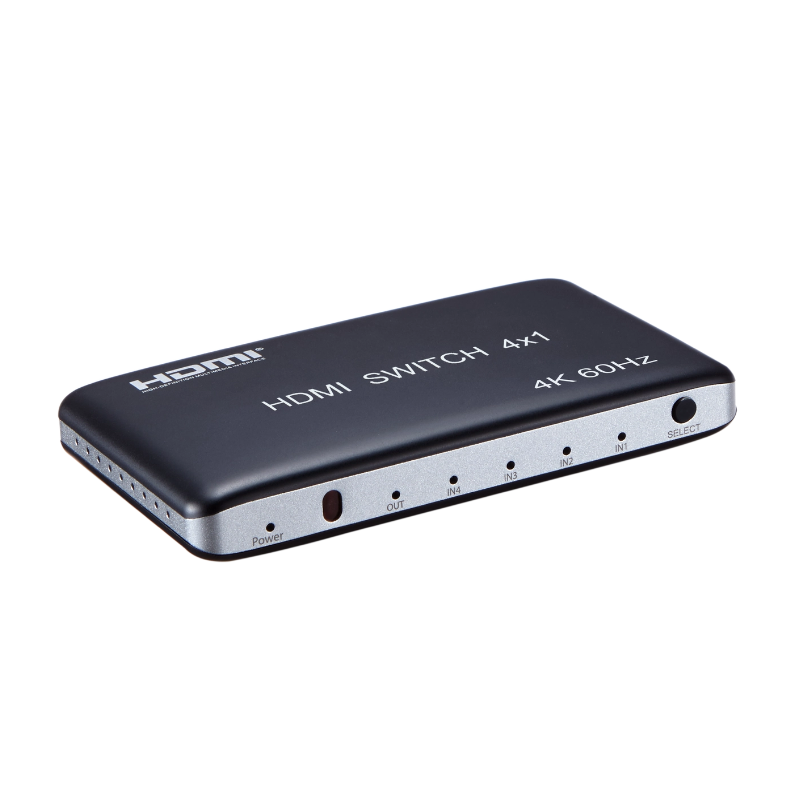

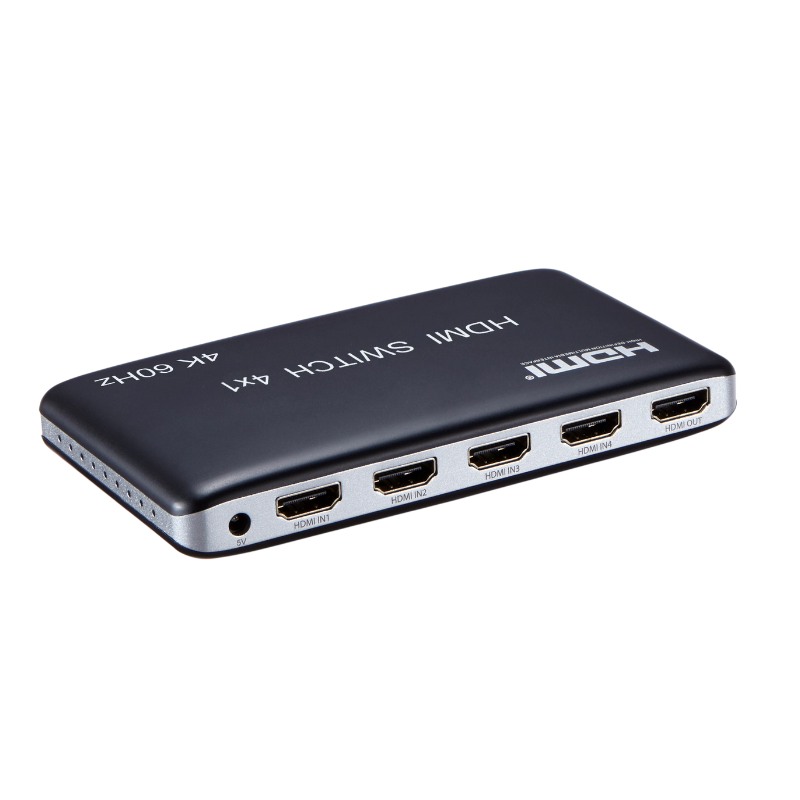

4K60Hz HDMI Switch 4x1 HDMI2.0

4K60Hz HDMI Switch 4x1 HDMI2.0

Model: HSW401-V2.0



Products Description

The 4x1 HDMI switch allows 4 HDMI ports to be switched to a single display terminal via remote control

or buttons on unit. The switcher can be placed at the end of a long HDMI cable to regenerate the HDMI

 signal.The HDMI switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz,4K/60Hz

multi-channel audio.


Features

*Support HDMI 2.0b

*Support 3D

*Support highest video resolution 4K/60Hz

*Support 6Gbps data rate for tmds clock up to 600MHz

*Support 24/30/36 bit deep color

*Supports auto switch of HDMI input (priority of the last port in 4)

*Support standard AWG26 cable, input up to 8 metres ,output up to 8 metres (4K/30Hz or lower)

      Support standard HDMI 2.0 cable, input up to 3 metres ,output up to 5 metres(4K/60Hz)

*Support single and high definition display for multiple sources, such as DVD Players

and Satellite Receivers, HD players, PS4, Set top Boxes.

*Need DC5V/1A power supply.


Specifications:

HDMI version.................................................……………………………………………………………………..… HDMI 2.0b

HDMI resolution ………………………....................................................................................................4K/60Hz

Support video format ..............................................................................................................................3D

Support video color format ………………………….............………...................................24/30/36 bit deep color

Support audio format………………............................................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………................................................600MHz

Max baud rate……………….…….………………….………………………………….....................................................6Gbps

Input cable distance..…………………………..……≤8m AWG26 HDMI standard cable(4K/30Hz);

≤3m 2.0 HDMI standard cable(4K/60Hz);

Output cable distance……………………………….…...≤8m AWG26 HDMI standard cable(4K/30Hz);

≤5m 2.0 HDMI standard cable(4K/60Hz);

Max working current………………………………………………………………………...............................................350mA

Power adapter format:……………..............................Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….…………………………………......................................(-10 to +55℃)

Dimension (L x W x H).....................................……………………………….………………………......136x80x22 (mm)

Weight…..………………………………………………………..…….………………………...................................................118g
