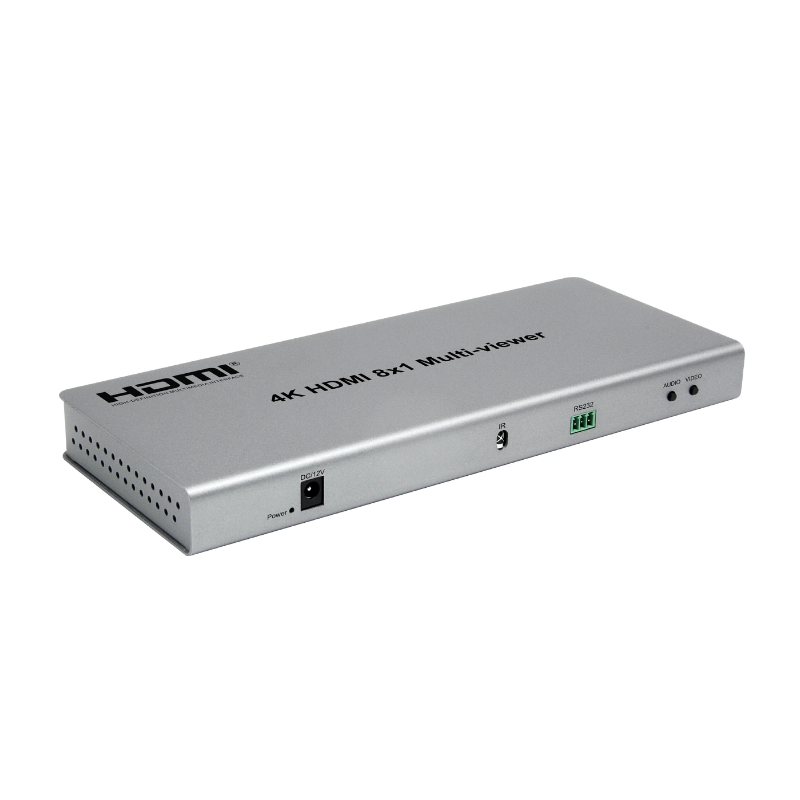

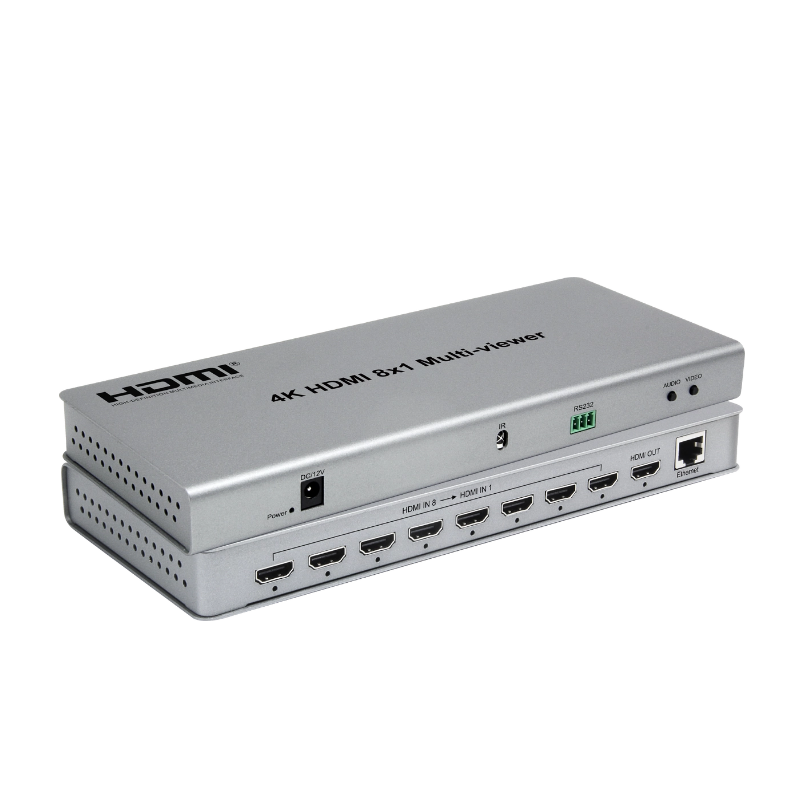

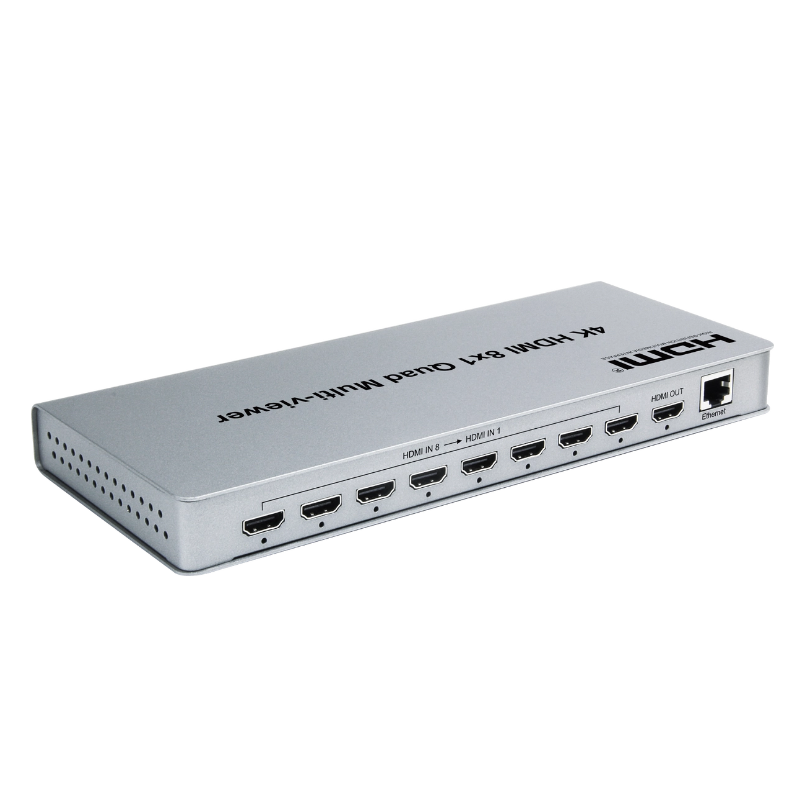

4K HDMI 8x1 Multi-viewer Switch

4K HDMI 8x1 Multi-viewer Switch

Model: HSW801-Q





Products Description

Introduction

 4K HDMI 8x1 Multi-viewer is a high performance with 8 HD screen segmentation

and seamless switching output switch. It can display 8 HD digital video signal on the same

screen, and has a variety of video segmentation, seamless switching 8 HD input signal

synchronously. The control methods of the switch is flexible, it can be switched via button

and IR control. It’s a very practical and stable switch and easy to install, can be used in the

major projects, meeting halls and other places.


Features

* Support 8 HDMI inputs, one HDMI output;

* Support 8 HDMI signal screen segmentation;

* Support 8 HDMI signal seamless switching;

* Support IR control;

* The input resolution support 3840x2160,1080P,720P,1080i,1024x768,1360x768 etc;

* The output resolution support 1080P@60HZ, 3840x2160@30HZ;

* Support audio and video superposition;

* More clearer subtitles;

* HDMI input and output transmission distance:high speed HDMI cable can reach 15M;

* Power: DC12V/1A;

* Net weight:792 g;

* Size(Length*Width*Height):252mm * 105mm *25mm;

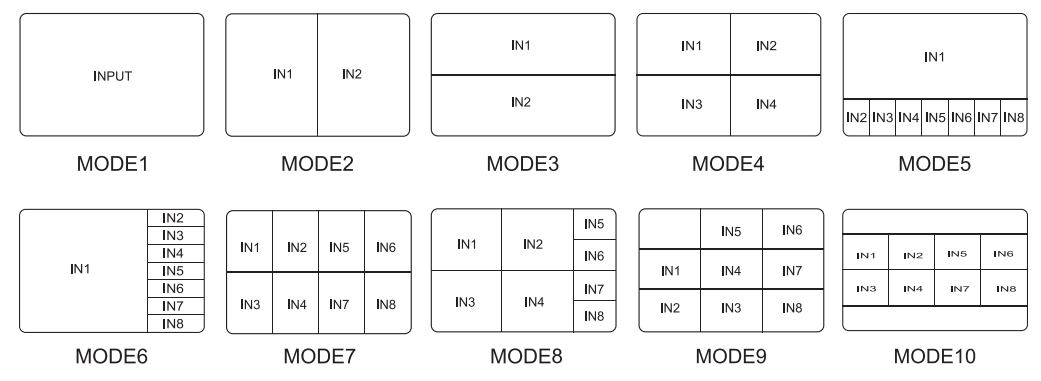

Ten modes for switching:
M

MODE1:Single image display mode(Channel 1-8 seamless switch)

MODE2&MODE3:Dual image display mode

MODE4:Quad display mode

MODE5 & MODE6:1 big -7 small display mode

MODE7 & MODE9 & MODE10:8 Image display mode

MODE8:4 big -4 small display mode
