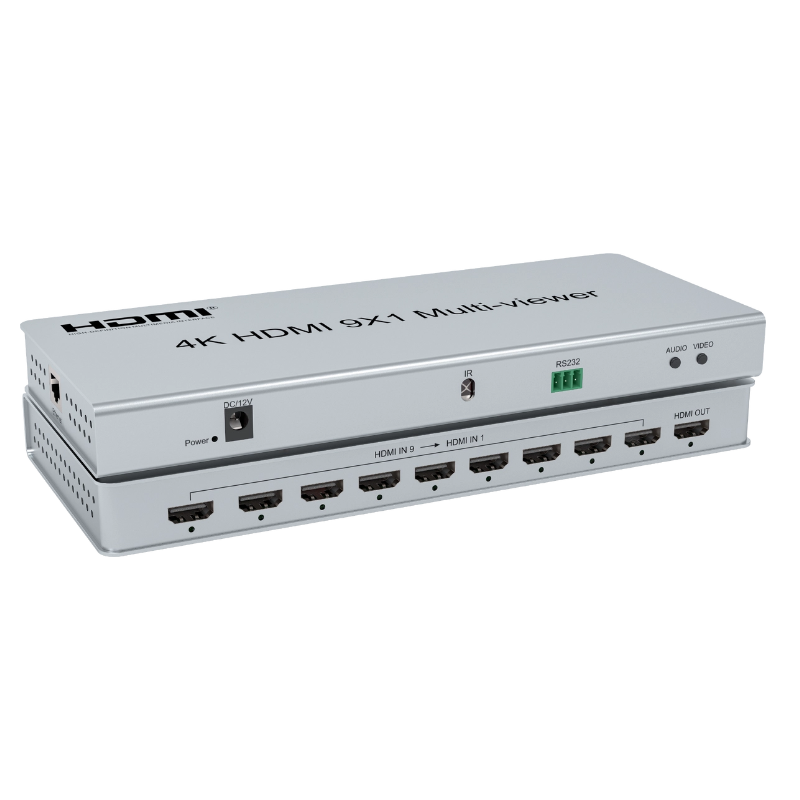

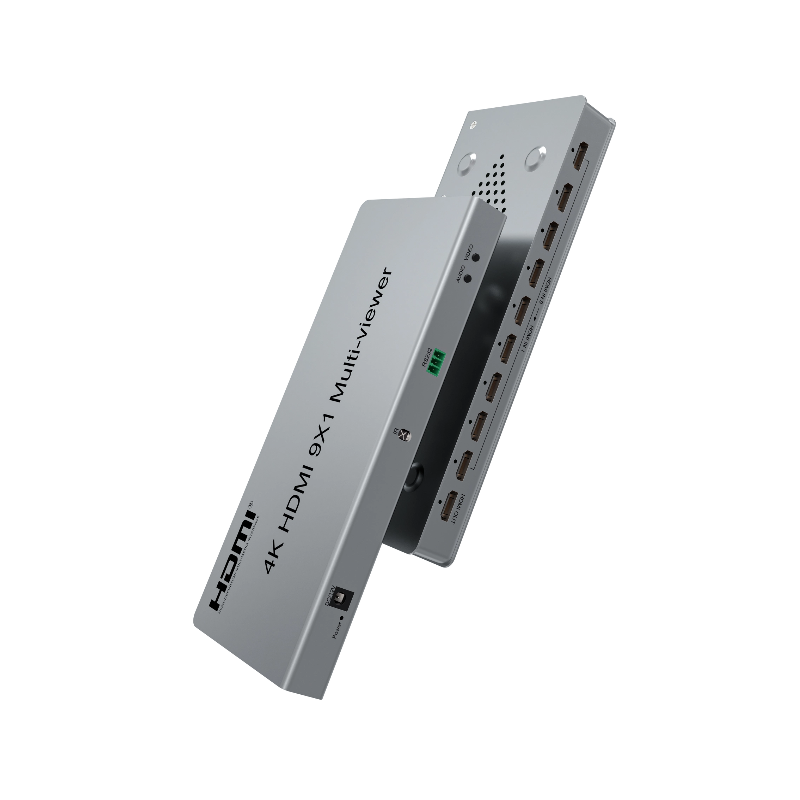

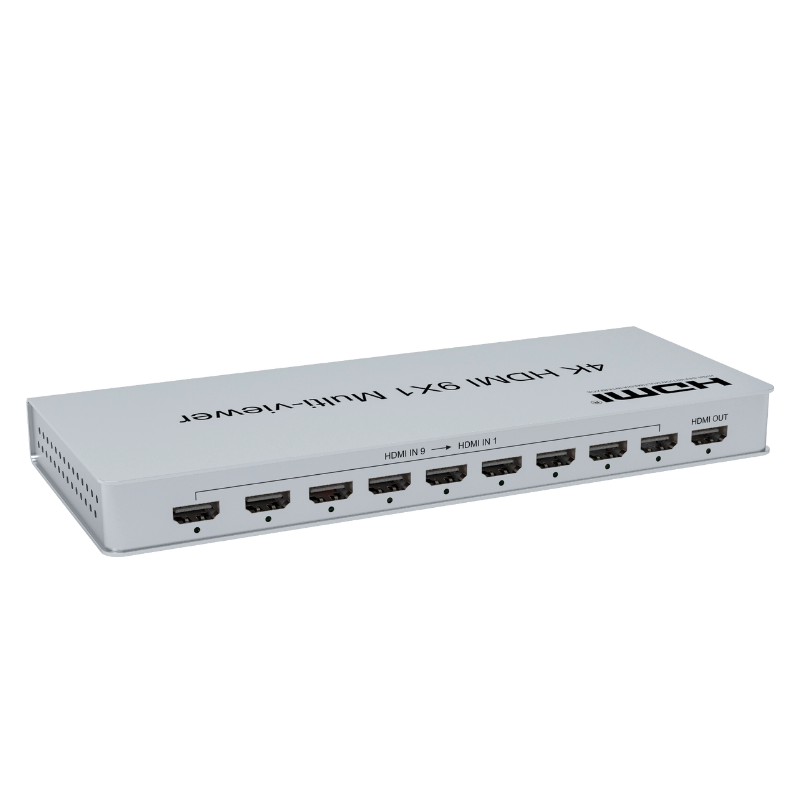

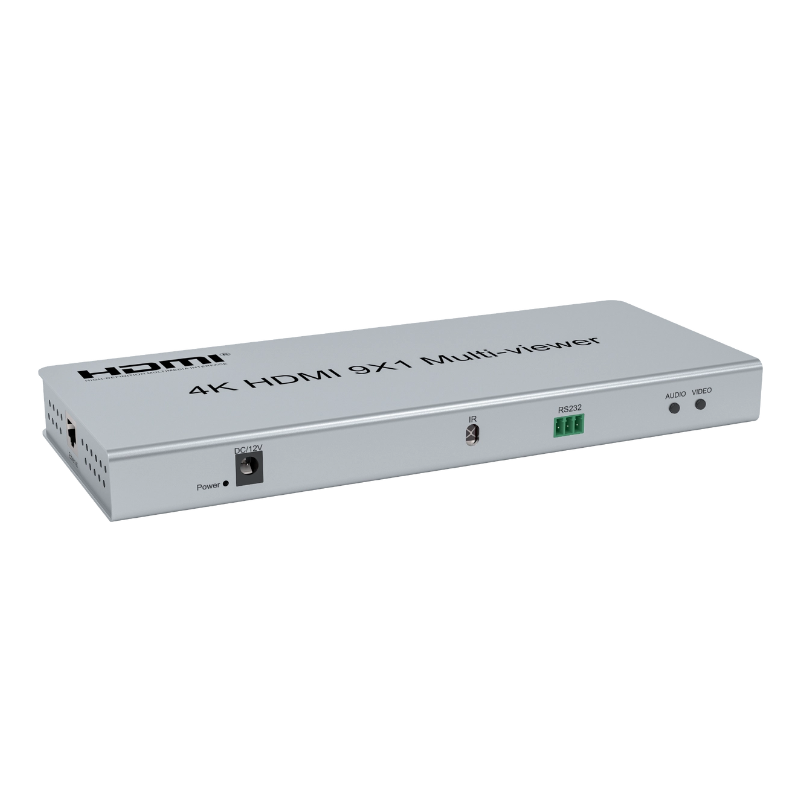

4K HDMI 9x1 Multi-viewer Switch

4K HDMI 9x1 Multi-viewer Switch

Model: HSW901-Q



Products Description

Introduction

 4K HDMI 9x1 Multi-viewer is a high performance with nine HD screen segmentation

and seamless switching output switch. It can display 9 HD digital video signal on the same

screen, and has a variety of video segmentation, seamless switching 9 HD input signal

synchronously. The control methods of the switch is flexible, it can be switched via button

and IR control. It’s a very practical and stable switch and easy to install, can be used in the

major projects, meeting halls and other places.


Features

* Support 9 HDMI inputs, one HDMI output;

* Support 9 HDMI signal screen segmentation;

* Support 9 HDMI signal seamless switching;

* Support IR remote control;

* More clearer subtitles;


Specifications:

HDMI input resolution ..........................................................….................... up to 1080P/60Hz

HDMI output resolution ……..........................................................…................. up to 4K/30Hz

Input and output cable distance …………….....…...….…. ≤10M AWG26 HDMI standard cable

Power adapter format ........................ Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A

Operating temperature range ……..…............……………………...…………… (-15℃to +55℃)

Dimension (L x W x H) .......................………………….………...………….… 252x105x25 (mm)

Weight …..………...……………………….........………………..…...….……………………… 816g

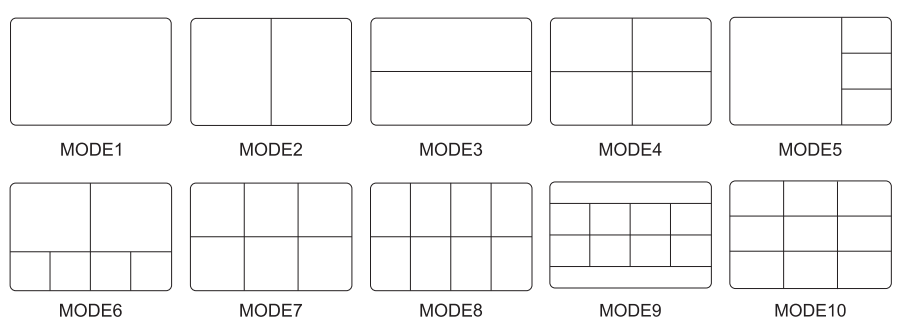

Common multi-viewer mode:
M

MODE1:Single image display mode(Channel 1-9 seamless switch)

MODE2 & MODE3:Dual image display mode

MODE4:Quad display mode

MODE5:1 big - 3 small display mode

MODE6:2 big - 4 small display mode

MODE7:6 image display mode

MODE9 & MODE9:8 image display mode(stretch/normal)

MODE10:9 image display mode
