Introduction

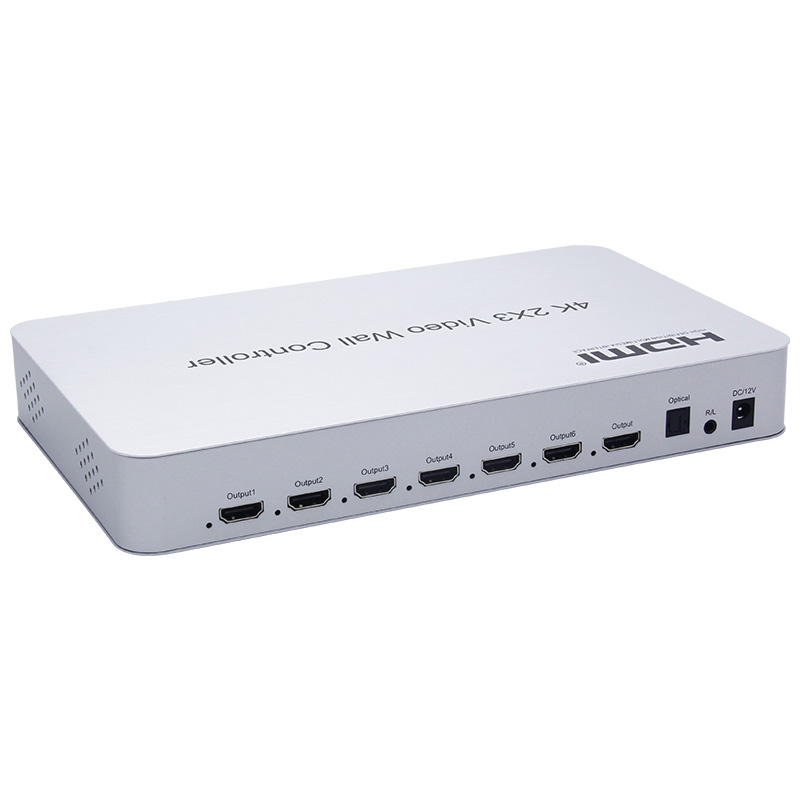

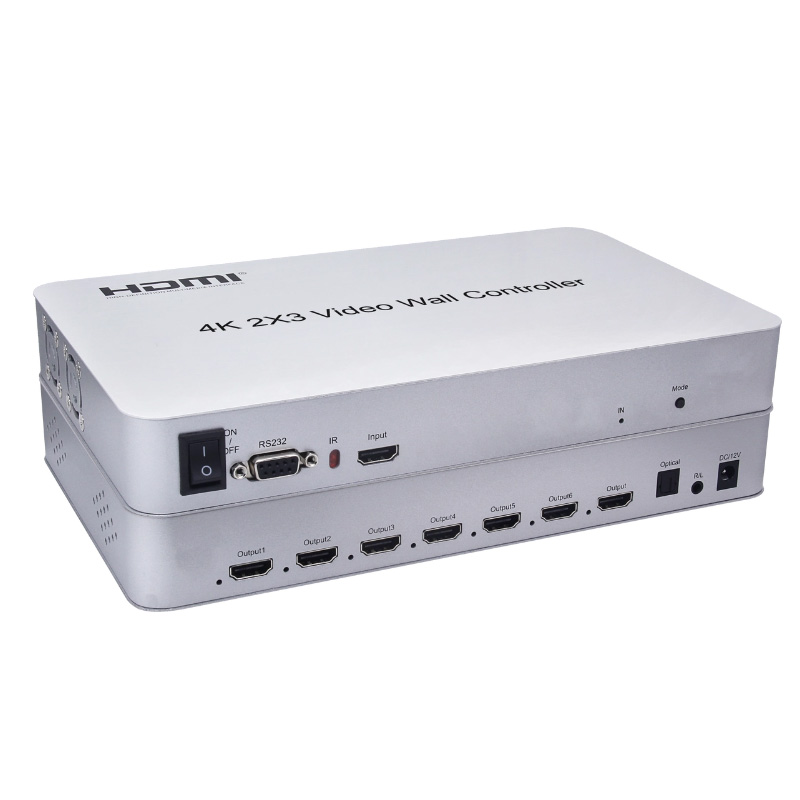

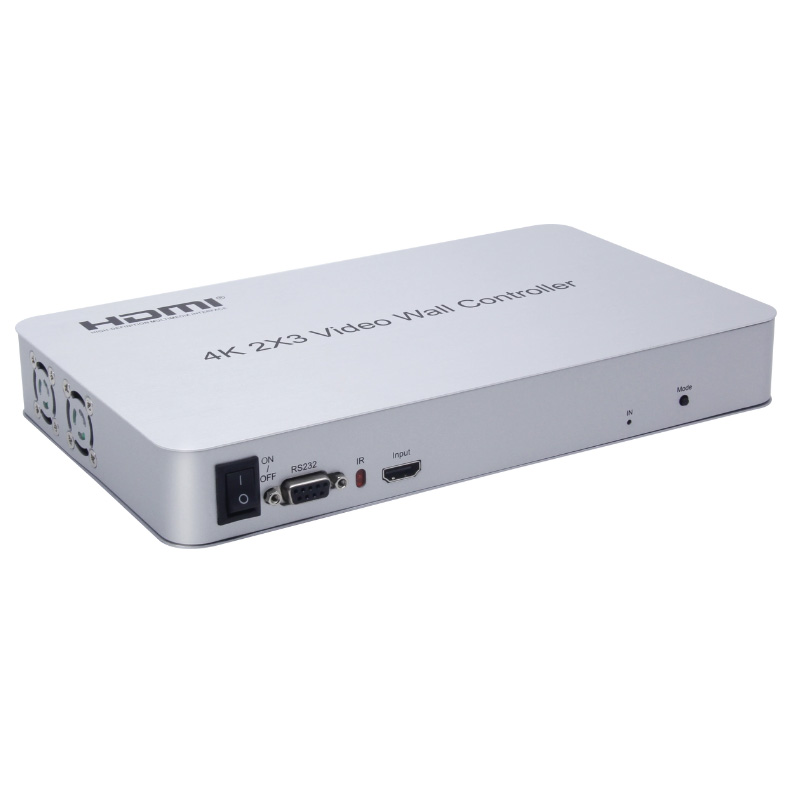

 The 2x3 video wall controller , support 1-way HDMI input and 6-way HDMI outputs, the

main function is to divide a complete HD image signal into 6 blocks and assign to 6 video

display units(such as Rear projection unit, LCD TV, etc.), Complete with 6 HDMI

high-definition video display units to form a large dynamic image screen.compose a video

wall perfectly without any control software, plug and play, easy to operate.

 Widely used in occasion of advertising screen, restaurant, teaching,etc..

Features

* Support multiple splicing modes；

* Support cascade splicing,you can splice more than 6 video walls；

* Support function of audio extraction,

 digital optical fiber and analog 3.5mm audio output；

* Pure hardware design, plug and play, no need any software.

Specifications

HDMI input resolution ……………………………….... the highest support 3840x2160/30Hz

HDMI output resolution ………………………………... the highest support1920x1080/60Hz

Support audio format ………………..……..................... DTS-HD/DTS/Dolby-AC3/PCM,etc.

Input cable length .......................................... 4K/30HZ,≤8m AWG26 HDMI standard cable

 4K/60HZ, ≤3m, V2.0 standard cable

Output cable length ………………….…………............ ≤10M,AWG26 HDMI standard cable

Max working current ………………………………….....................………...……............... 2A

Power adapter specifications …...... input AC (50HZ, 60HZ) 100V-240V Output 12VDC/3A

Operating Temperature range ………………………………………...…........ (-10℃～ +45℃)

Dimension (L x W x H) ………………………………...……………............. 263x159x38(mm)

Weight ….…..……………………………………………................................……...... 1258.5g

Common splicing mode
