4K60Hz HDMI 5x9 Video Wall Controller

4K60Hz HDMI 5x9 Video Wall Controller

Model: HVWC03





Products Description

The 5x9 video wall controller support 4 way hdmi/1way DP input,10 way hdmi output,the

main function is to divide a complete hdmi HD image signal into 9 pieces and then be

assigned to 9 video display unit((such as Rear projection unit, LCD TV, etc).Complete with

 9 HDMI high-definition video display units to form a large dynamic image screen.

At the same time, the 4-way hdmi HD signal can be displayed on the screen, and has a

variety of video segmentation effects.

It is mainly used in ultra-high definition video surveillance, large screen wall, store

advertising screen, exhibition screen and other industry applications


Features:

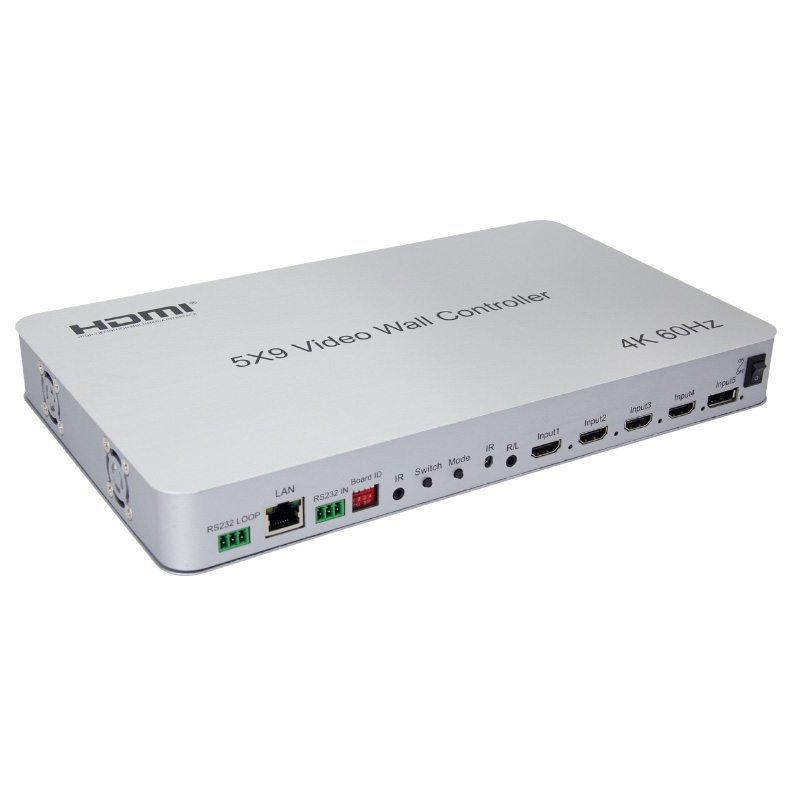

* Supports 4way hdmi input (1way 4k@60hz, 3way 4k@30hz), 1way dp input (4k@60hz),

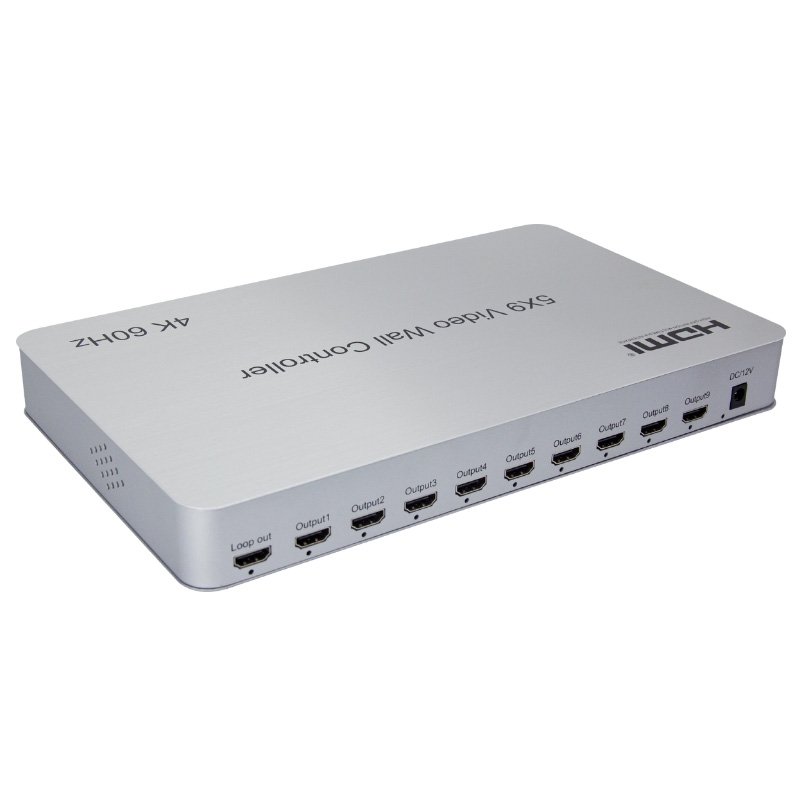

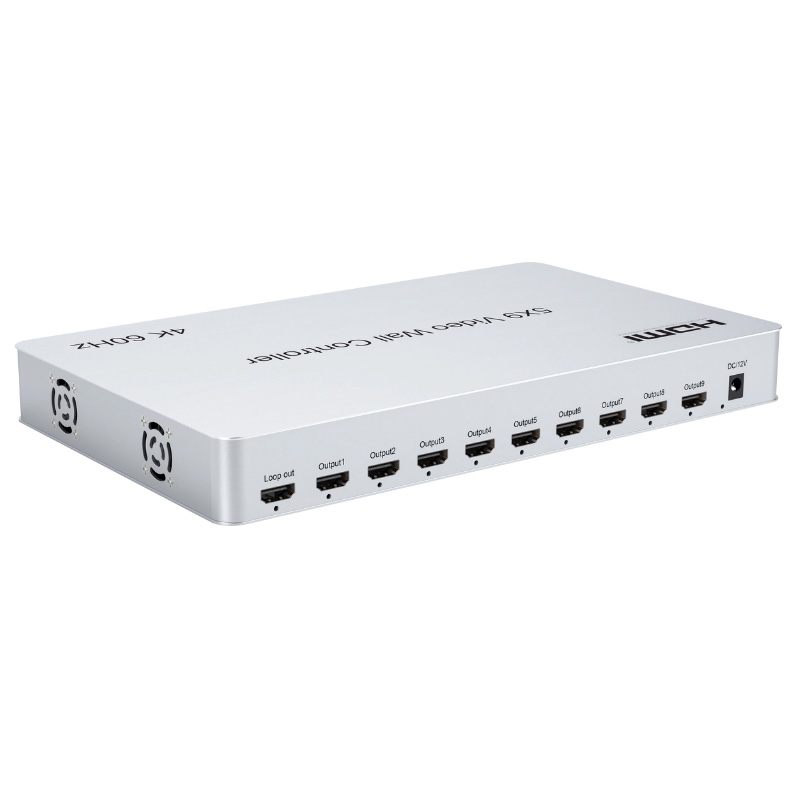

 and 9way hdmi output (1080p@60hz),1 hdmi loopout (picture is consistent with the

 splicing picture),one 3.5mm headphones stereo output.

* Single device, 5 in 9 out (1x1~4x4 compatible),various splicing modes: horizontal /

 vertical / 2x2,and support the large-scale cascade and parallel use with loopout port.

* Maximum full screen 4 segmentation, support a variety of segmentation modes(Single

 picture, double picture with picture in picture, four picture segmentation),any input source

 channels can be allocated to the split screen.

* Input resolution up to 3840x2160@60Hz,down ward compatible,one output resolution

 support up to 1920x1080@60hz(Output supports custom standard resolution).

*Input supports full-screen 90°rotation (support only single-screen mode ),the output

 supports the first row of 180 ° rotation(Support only in splicing mode when two rows)

*No stretching, no deformation, no need to compress the input source, the picture is clear.

* Support for remote control, button, RS232 control.


Specifications

HDMI input resolution …………………………….….... the highest support 3840x2160/60Hz

HDMI output resolution ………………………………... the highest support 1920x1080/60Hz

Support audio format ………………........................……............................................. stereo

Input cable length .......................................................... ≤5m AWG26 HDMI standard cable

Output cable length ………………….………….............. ≤5M,AWG26 HDMI standard cable

Max working current ………………………………….........................………...……........... 1 A

Power adapter specifications …...... input AC (50HZ, 60HZ) 100V-240V Output 12V DC/2A

Operating Temperature range …………………………………………........... (-10℃~ +45℃)

Dimension (L x W x H) ………………………………...……………............. 305x184x37(mm)

Weight ….…..……………………………………………..........................…................... 1720g
