Introduction

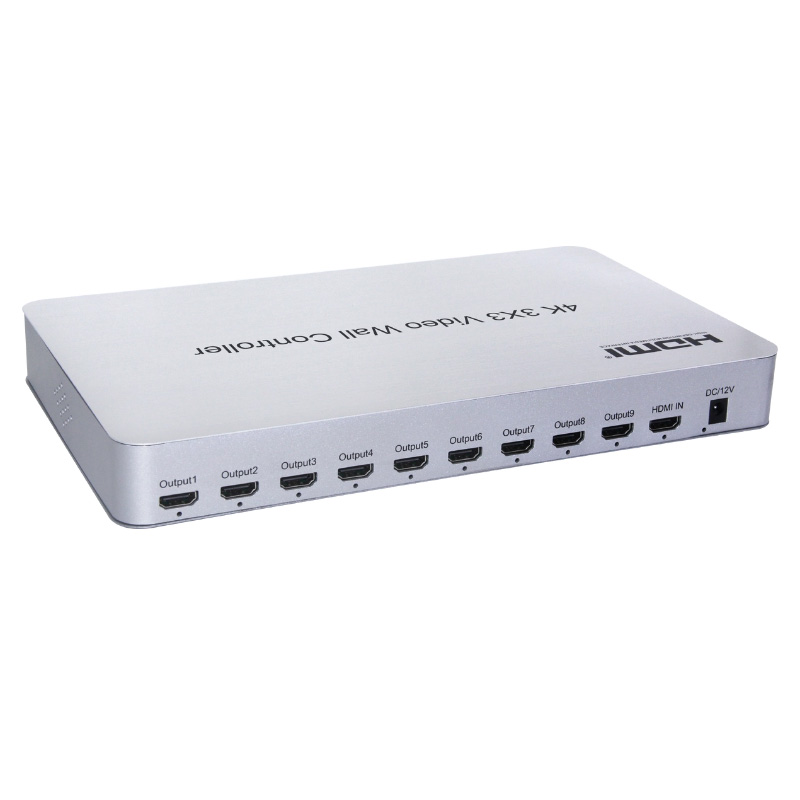

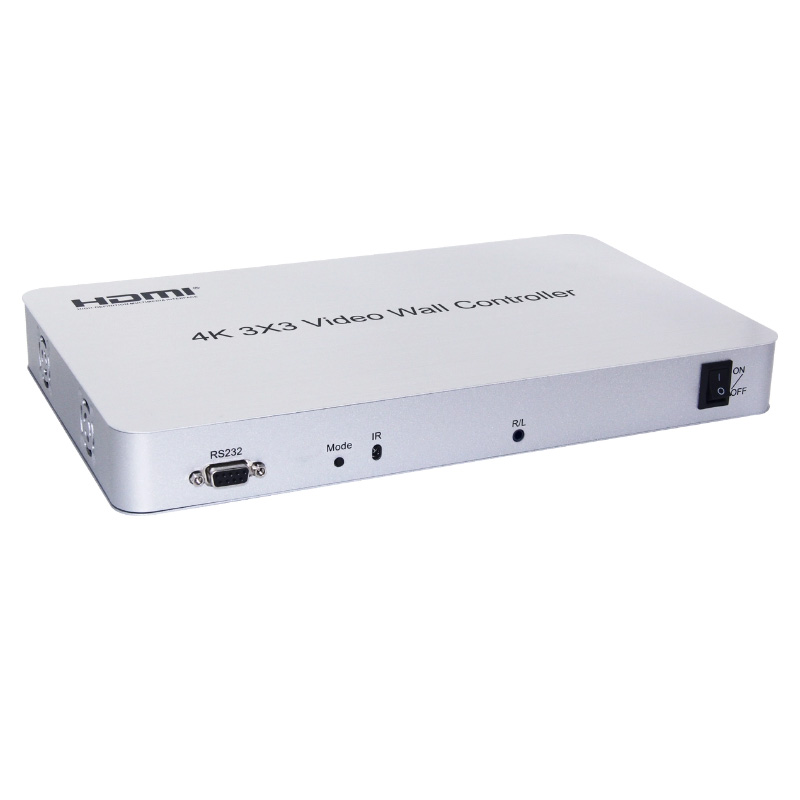

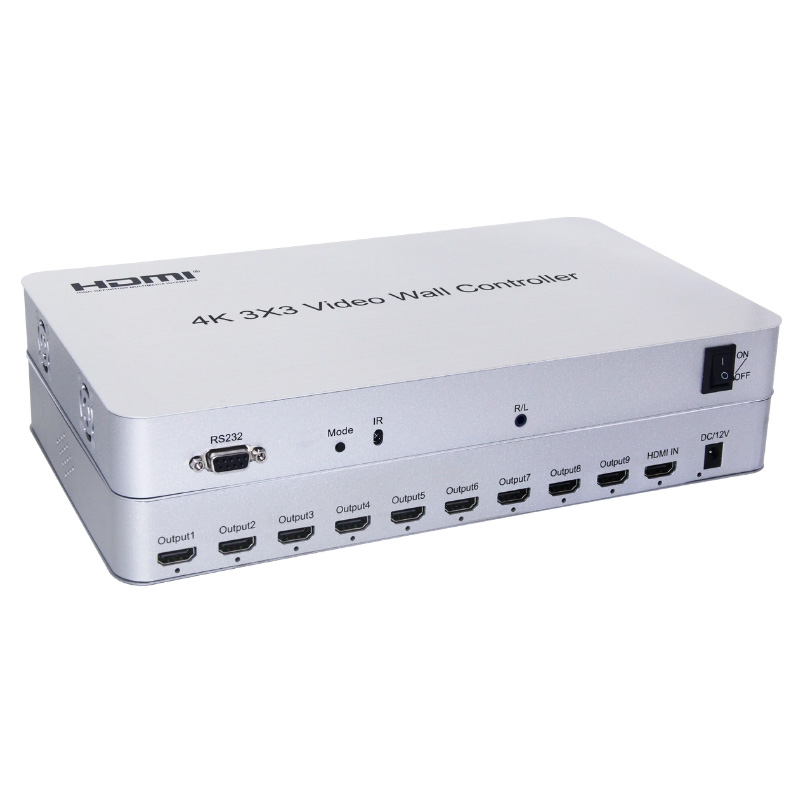

 The 4K 3x3 video wall controller , support 1-way HDMI input and 9-way HDMI outputs,

the main function is to divide a complete HD image signal into 9 blocks and assign to 9

video display units(such as Rear projection unit, LCD TV, etc.), Complete with 9 HDMI

high-definition video display units to form a large dynamic image screen.

 As a video wall controller, It support display a single complete picture with HD multiple

splicing modes, compose a video wall perfectly without any control software, plug and play,

easy to operate.

 It was widely used in occasion of advertising screen, restaurant, teaching,etc..

Features

* Support HDMI input；

* Support 9 HDMI outputs；

* Support multiple splicing modes, easy to operate, plug and play；

* Support 8/10/12 bit deep color;

* Support IR control.

Specifications

HDMI input resolution ……………………………….... the highest support 3840x2160/30Hz

HDMI output resolution ………………………………... the highest support1920x1080/60Hz

Support audio format ………………..……................................................................... stereo

Input cable length ......................................................... ≤8m AWG26 HDMI standard cable

Output cable length ………………….…………............ ≤10M,AWG26 HDMI standard cable

Max working current ………………………………….....................………...……........... 1.6 A

Power adapter specifications ….......................……...... input AC (50HZ, 60HZ) 100V-240V

 Output 12V DC/3A

Operating Temperature range …………………………………………........... (-10℃～ +45℃)

Dimension (L x W x H) ………………………………...……………............. 305x185x35(mm)

Weight ….…..……………………………………………..........................…................... 1747g

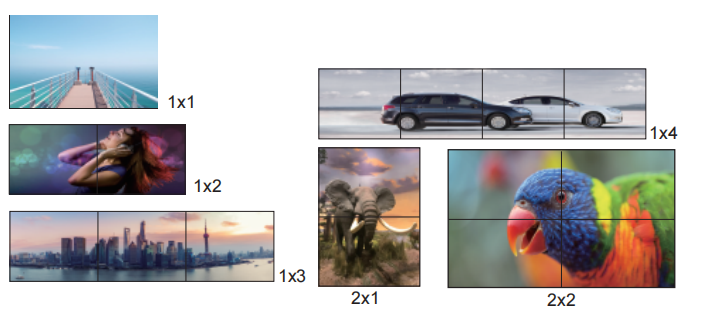

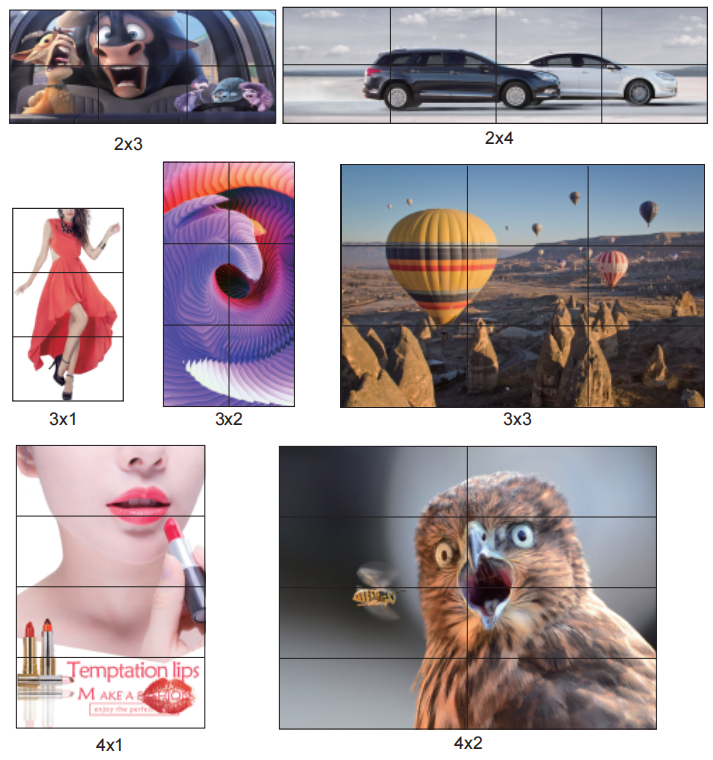

Common splicing mode
